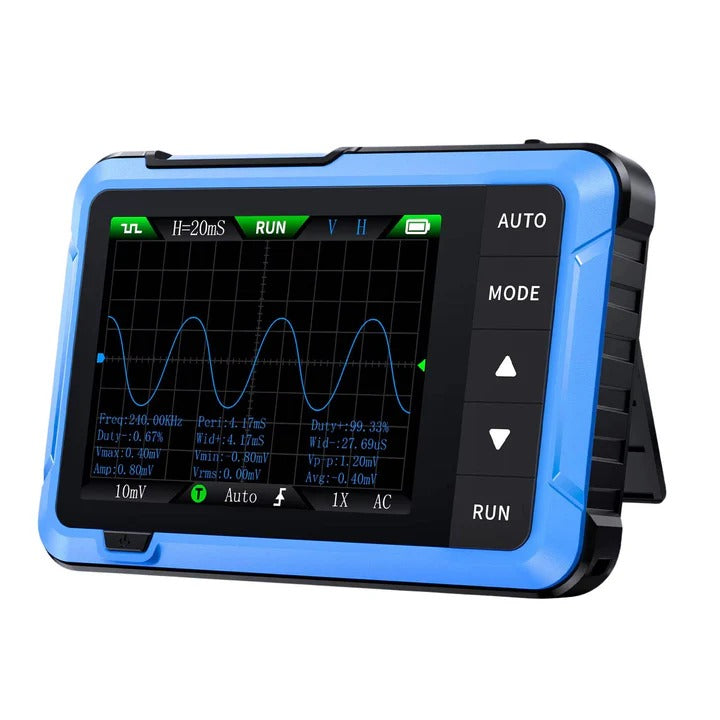

Compact Handheld Oscilloscope for Electronic Signal Analysis

Unlock Efficient Troubleshooting with Our Handheld Digital Oscilloscope

Are you tired of wasting time guessing where the signal drops in a dead circuit? Our handheld digital oscilloscope is here to change that. With its built-in signal generator, you can test and diagnose from one device, saving you time and hassle. Whether you're working at your workstation, in the field, or demoing live signals in a class, our oscilloscope has got you covered.

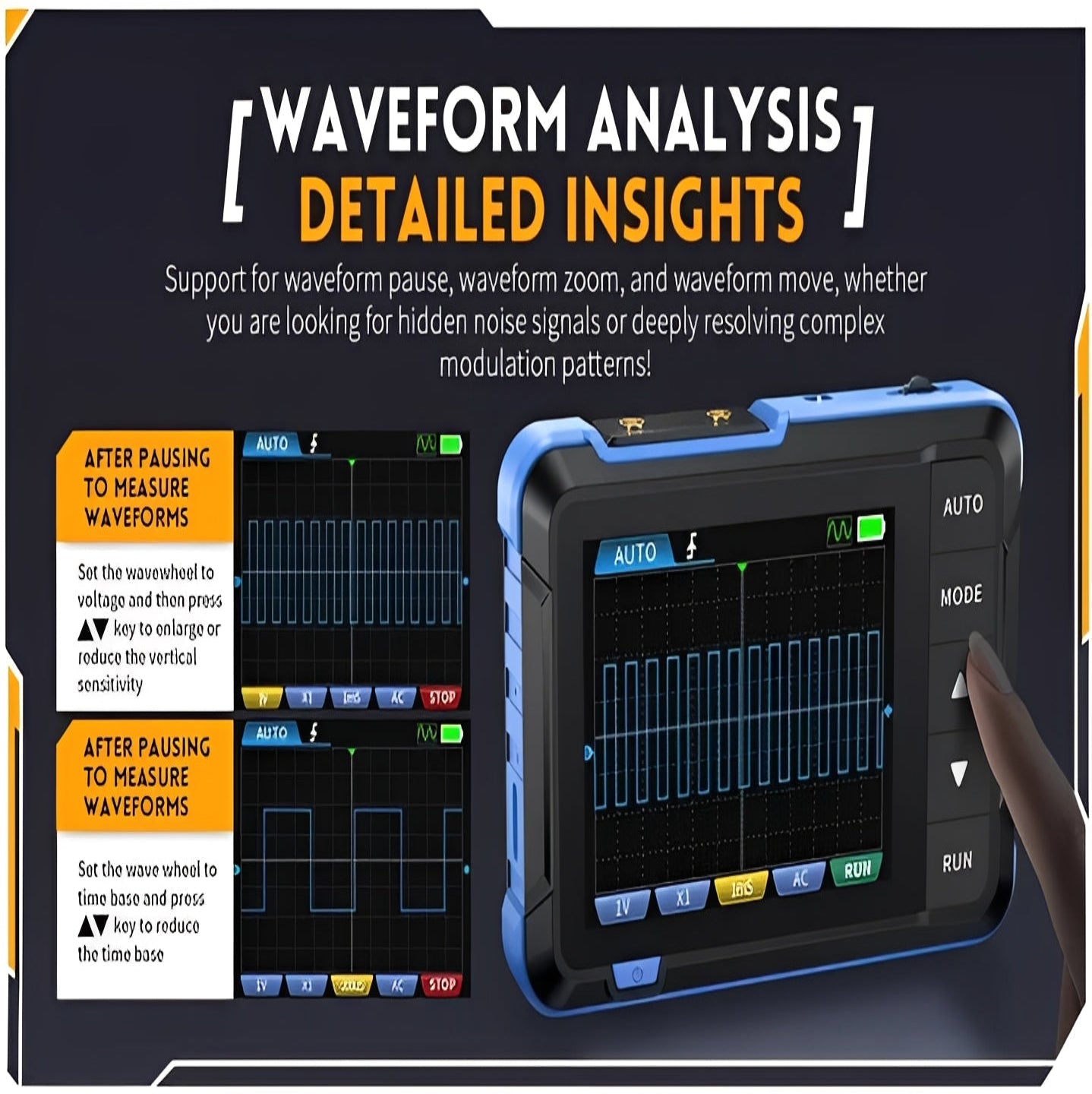

With the AUTO button, our oscilloscope locks onto your signal and displays it on the 2.8 inch screen without manual adjustments. You can capture steady repeating waves, one-time events, or irregular signals with our three trigger modes. The built-in signal generator outputs test cycles, allowing you to verify your setup and check responses from the same device, eliminating the need for extra equipment.

We offer two versions: the standard version samples at 5 million snapshots per second with a 1 million cycle bandwidth, perfect for general testing and everyday diagnostics. The pro version jumps to 48 million snapshots per second with a 10 million cycle bandwidth, ideal for faster, more complex signal work. Both models measure voltages safely up to 400 volts with built-in protection, so you can test higher power circuits without risking damage to the scope.

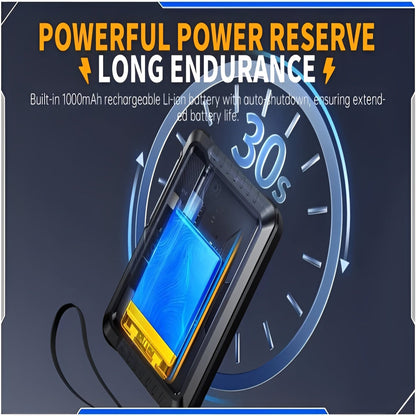

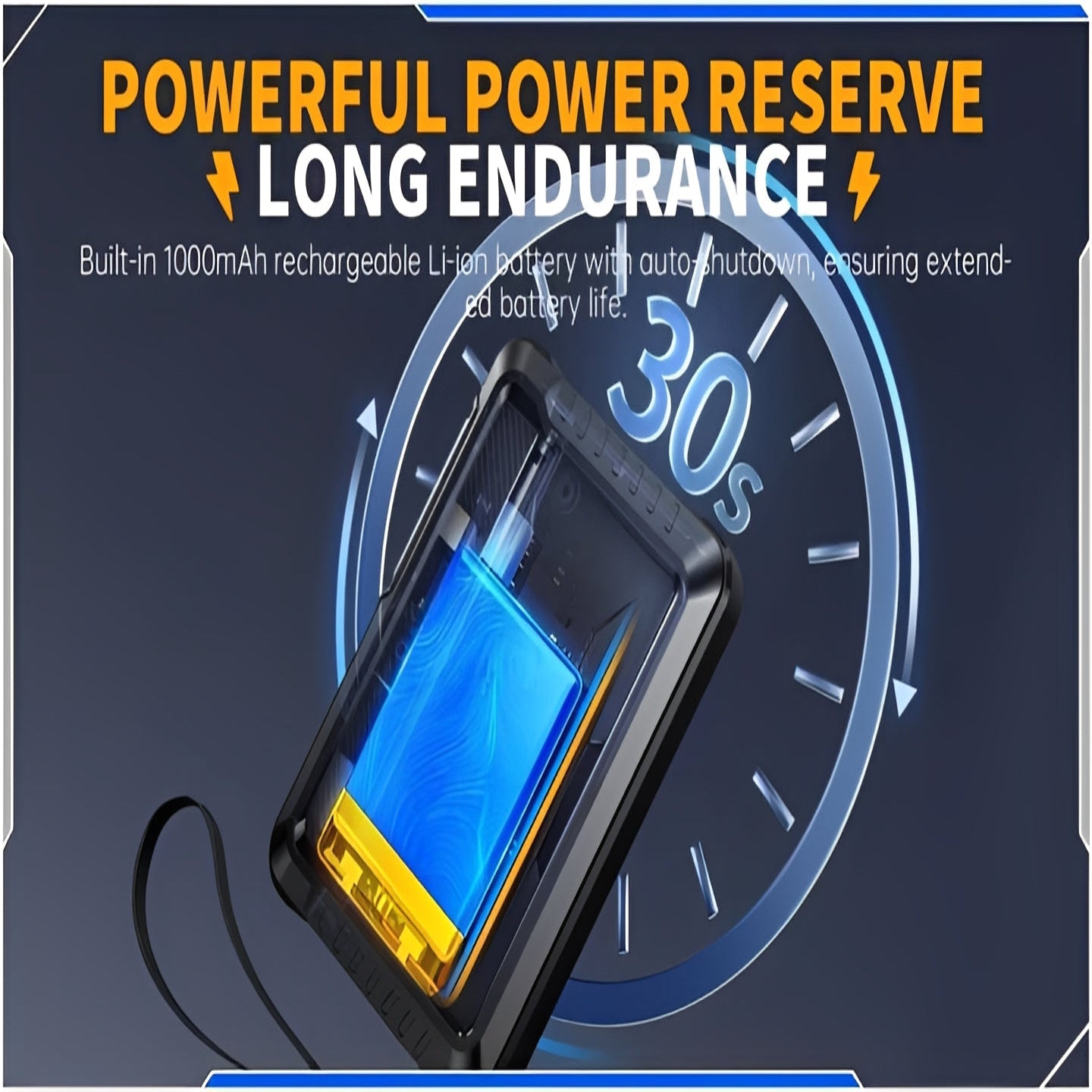

Our oscilloscope is designed for portability and convenience. The 1000mAh battery runs for four straight hours, so you can work through long sessions in the field without needing to stop and find an outlet. The compact size fits in your hand or clips to a lanyard, making it easy to take with you wherever you go. The pro model also includes a 100 million cycle passive probe and adapter, so advanced users can get started right away without buying extras separately.

• ONE-TOUCH AUTO DETECTION: Lock onto your signal automatically with the AUTO button and display it on the 2.8 inch screen with no manual setup needed.

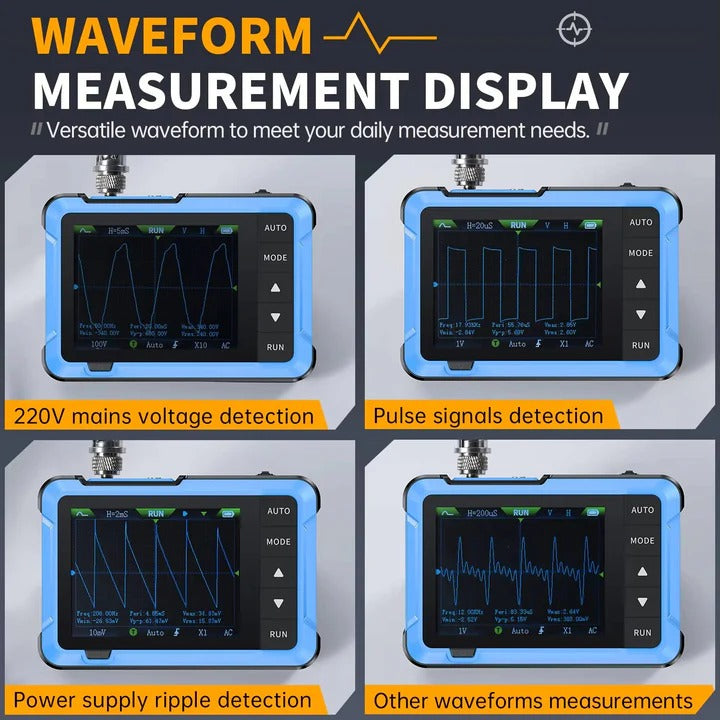

• THREE TRIGGER CAPTURE MODES: Capture steady repeating waves, one-time events, or irregular signals depending on what you need to track down.


• BUILT-IN SIGNAL GENERATOR: Output test cycles and verify your setup and check responses from the same device without connecting extra equipment.


• STANDARD AND PRO VERSIONS: Choose the standard version for everyday diagnostics or the pro version for faster, more complex signal work.


• 400 VOLT SAFE MEASUREMENT: Measure voltages safely up to 400 volts with built-in protection, so you can test higher power circuits without risking damage to the scope or your setup.


• 4-HOUR PORTABLE BATTERY: Work through long field sessions with the 1000mAh battery, which powers our oscilloscope for up to four straight hours.


• HANDHELD COMPACT BUILD: Our oscilloscope fits in your hand or clips to a lanyard, making it easy to take with you wherever you go.


• PRO MODEL PROBE INCLUDED: Get started right away with the included 100 million cycle passive probe and adapter, perfect for advanced users.

Product Specifications

• Type: Handheld Digital Oscilloscope with Signal Generator
• Display: 2.8 Inch Screen
• Standard Sample Rate: 5 Million Snapshots Per Second
• Standard Bandwidth: 1 Million Cycles
• Pro Sample Rate: 48 Million Snapshots Per Second
• Pro Bandwidth: 10 Million Cycles
• Max Voltage: 400 Volts (Built-In Protection)
• Battery: 1000mAh, Up to 4 Hours
• Trigger Modes: 3 (Repeating, Single-Event, Irregular)
• Built-In Feature: Signal Generator

What's Included

• 1 x Handheld Digital Oscilloscope
• 1 x Standard Test Probe
• 1 x USB Charging Cable
• 1 x 100 Million Cycle Passive Probe and Adapter (Pro Model Only)

Frequently Asked Questions

Do I need to manually adjust the settings to read a signal?
No, the AUTO button locks onto your signal automatically and displays it on the 2.8 inch screen with no manual adjustments needed.

What's the difference between the standard and pro version?
The standard version is perfect for everyday diagnostics, while the pro version is ideal for faster, more complex signal work, with a higher sample rate and bandwidth.

Can I test higher voltage circuits safely?
Yes, both models measure voltages safely up to 400 volts with built-in protection, so you can test higher power circuits without risking damage to the scope or your setup.

How long does the battery last in the field?
The 1000mAh battery runs for up to four straight hours, so you can work through long sessions without needing to stop and find an outlet.
